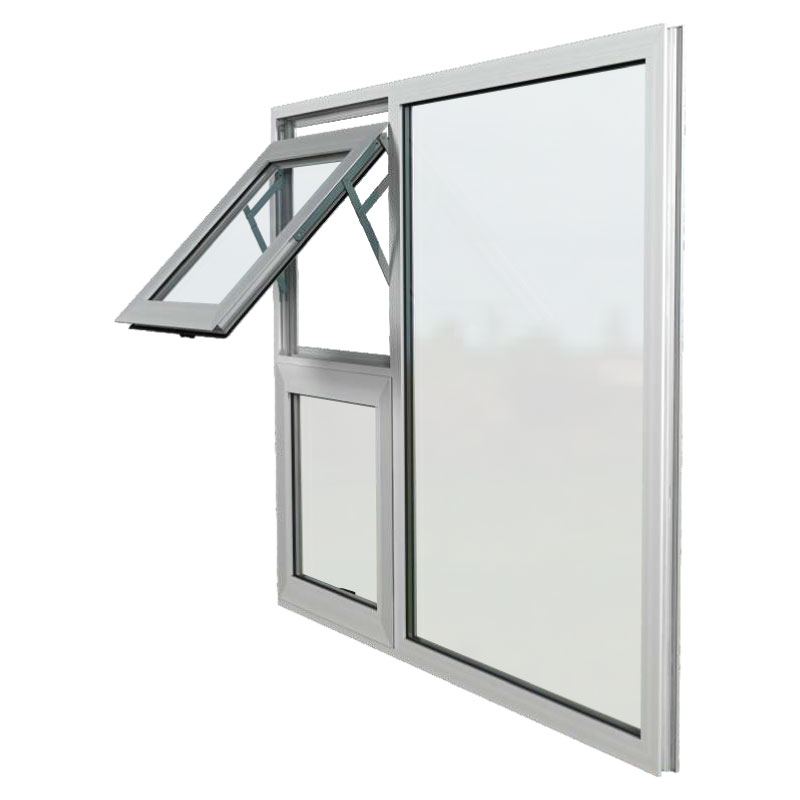

Aluminium Extrusion - Window Swift 30.5

Product Information:

The Window Swift 30.5(30.5mm outer frame) is a projected top and side hung window system for the residential market. The Casement 30.5 window offers a diversity of window configurations to best suit your specific building requirements. The Casement 30.5 is limited to the following vent sizes: Maximum top hung vent dimensions of 1000mm x 750mm and a maximum side hung vent dimensions of 600mm x 1200mm.


  • Designed to accommodate burglar bars if required
  • The window is draft free and watertight due to the use of effective seals
  • Vents hinges on friction stays that allow the window to remain open at various angles whithout using a peg stay
  • Can be built in a facebrick wall or plastered opening
  • Insect screens can be added at the time of manufacturing or at a later stage


  • The casement window is suitable for single glass panes (single glazing)
  • It allows for various thickness of glass ranging between 4mm clear float glass to 6.38mm laminated safety glass

Gaskets & Seals:

  • High quality, locally available gaskets and seals are available
  • Affordable and reliable


  • Available in a variety of popular architectural powder coating colours and finishes.


  • Designed to accommodate standard local hardware

Download Specifications Download Wall Chart
